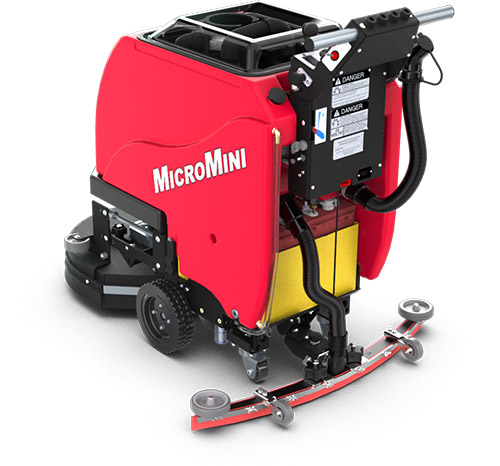

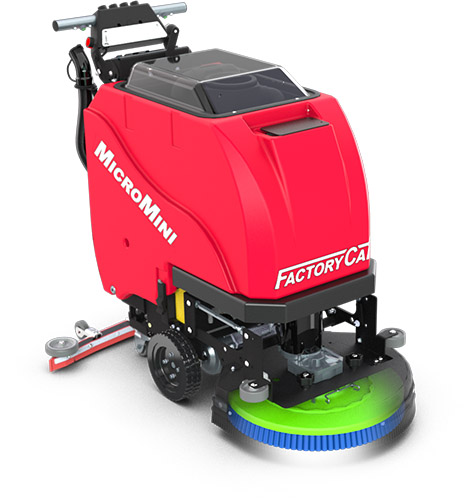

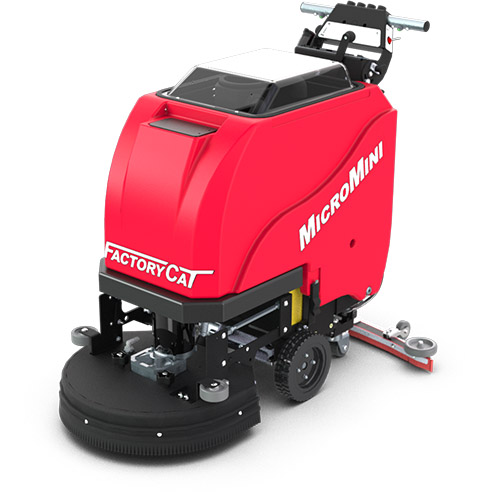

Factory Cat MicroMini 20D Traction Drive
Heavy-Duty Performance. Effortless Control.
The Factory Cat MicroMag 20D Traction Drive is a premium compact walk-behind scrubber that brings industrial-strength cleaning to tight, congested spaces. While the base “Pad Assist” model uses brush friction for movement, the Traction Drive version features a dedicated power-drive system with a powerful all-gear transaxle.
Designed to clean everything from machine shops and car dealerships to food packaging facilities, the MicroMag 20D stands up to the demands of daily industrial use. Its combination of 10-gallon tanks and a 20-inch cleaning path offers superior productivity in an easy-to-maneuver design.
Key Features
- Power Traction Drive: Includes a 0.4 hp all-gear, sealed transaxle for effortless operation, powered reverse, and the ability to climb ramps.
+2 - Heavy-Duty Construction: Built on a 1/8″ (10-gauge) powder-coated steel frame with stainless steel fasteners and a laser-cut steel curved squeegee.
+2 - Industrial Scrubbing Power: A high-torque 0.75 hp disk motor provides the performance needed to remove tire marks and heavy buildup.
+2 - Service-Friendly “Tip-Back” Design: The tank tips back completely to provide toolless access to batteries, motors, vacuum, and filters for easy maintenance.
+2 - Superior Water Recovery: Features a powerful 3-stage vacuum motor and a cleanable recovery tank with a stainless drain saver to eliminate clogged floor drains.
+2
Technical Specifications
| Feature | Specification |
| Scrub Path | 20 inches (51 cm) |
| Brush Type | Single Disk (1 x 20″ Pad) |
| Drive System | 0.4 hp All-Gear / Sealed Traction Drive |
| Solution Tank Capacity | 10 Gallons (38 Liters) |
| Recovery Tank Capacity | 10 Gallons (38 Liters) |
| Brush Speed | 200 RPM |
| Brush Motor | 0.75 hp (Optional 1.0 hp upgrade) |
| Brush Down Pressure | 0 – 125 lbs (Adjustable) |
| Cleaning Rate (Theoretical) | Up to 20,525 sq. ft. / hr |
| Battery Run Time | Up to 3 Hours |
| Dimensions (L x W x H) | 40″ x 18″ x 38″ |
| Weight (w/ Batteries) | 317 lbs |
Why Choose the MicroMag 20D Traction Drive?
“Built Like Our Riders, Sized for Your Aisles.” The MicroMag is entirelly made in the USA with components sourced over 95% from American suppliers. It provides the same durability as our largest rider scrubbers in a platform nimble enough to clean hard-to-reach areas.
Ideal Applications:
- Machine Shops: Navigates around steel car lifts and metal floor grates.
- Food & Beverage: Fully cleanable recovery tank prevents odors and contamination.
- Fabrication Plants: Built to take abuse in tough “building” environments.
- Warehouses: Efficiently cleans narrow aisles and service bays.
Ready to Upgrade Your Fleet?
Contact us today at (800) 890-0678 for a free on-site demonstration or to request a customized quote for your facility.
